PA 28 Windlace

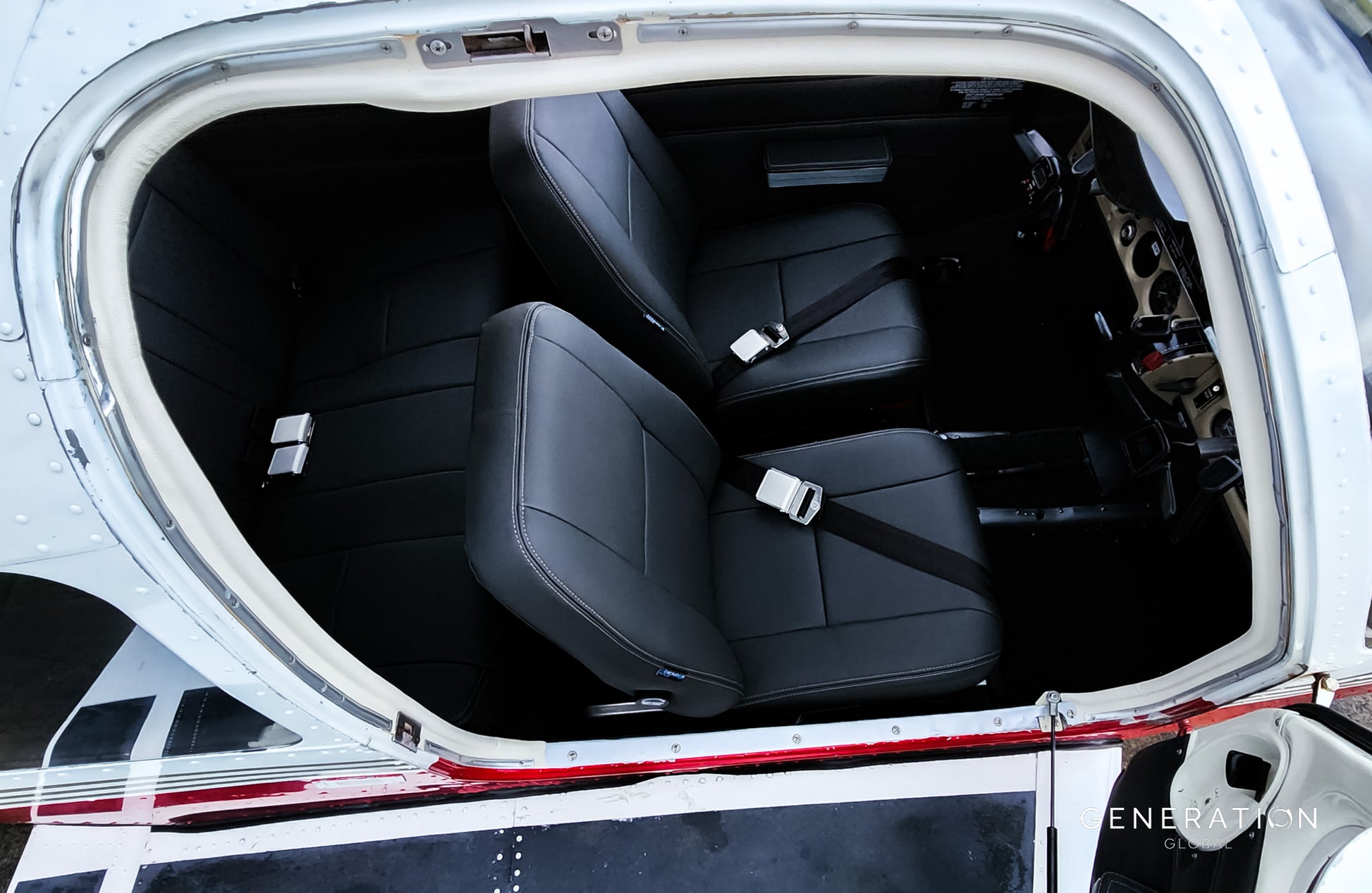

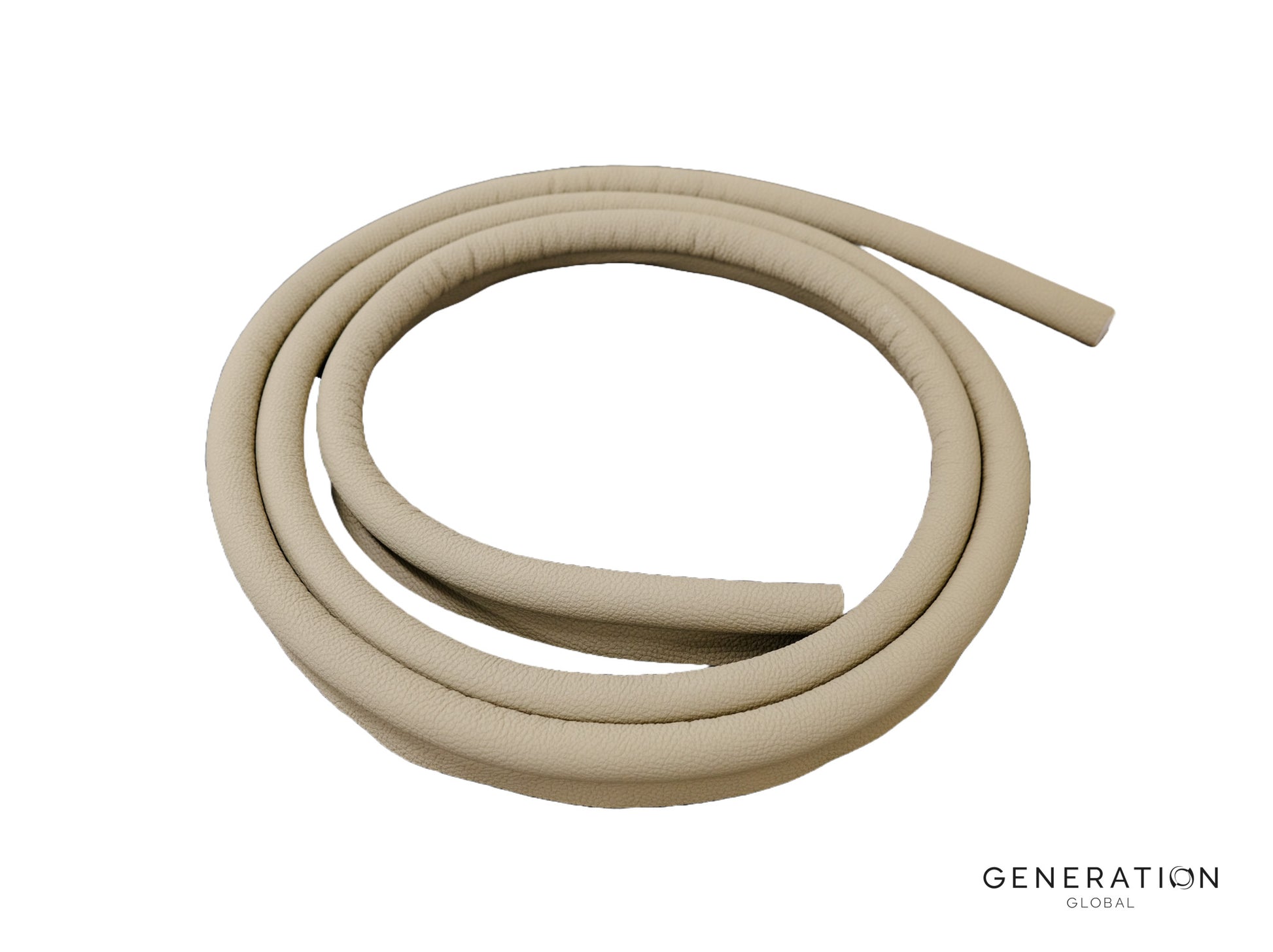

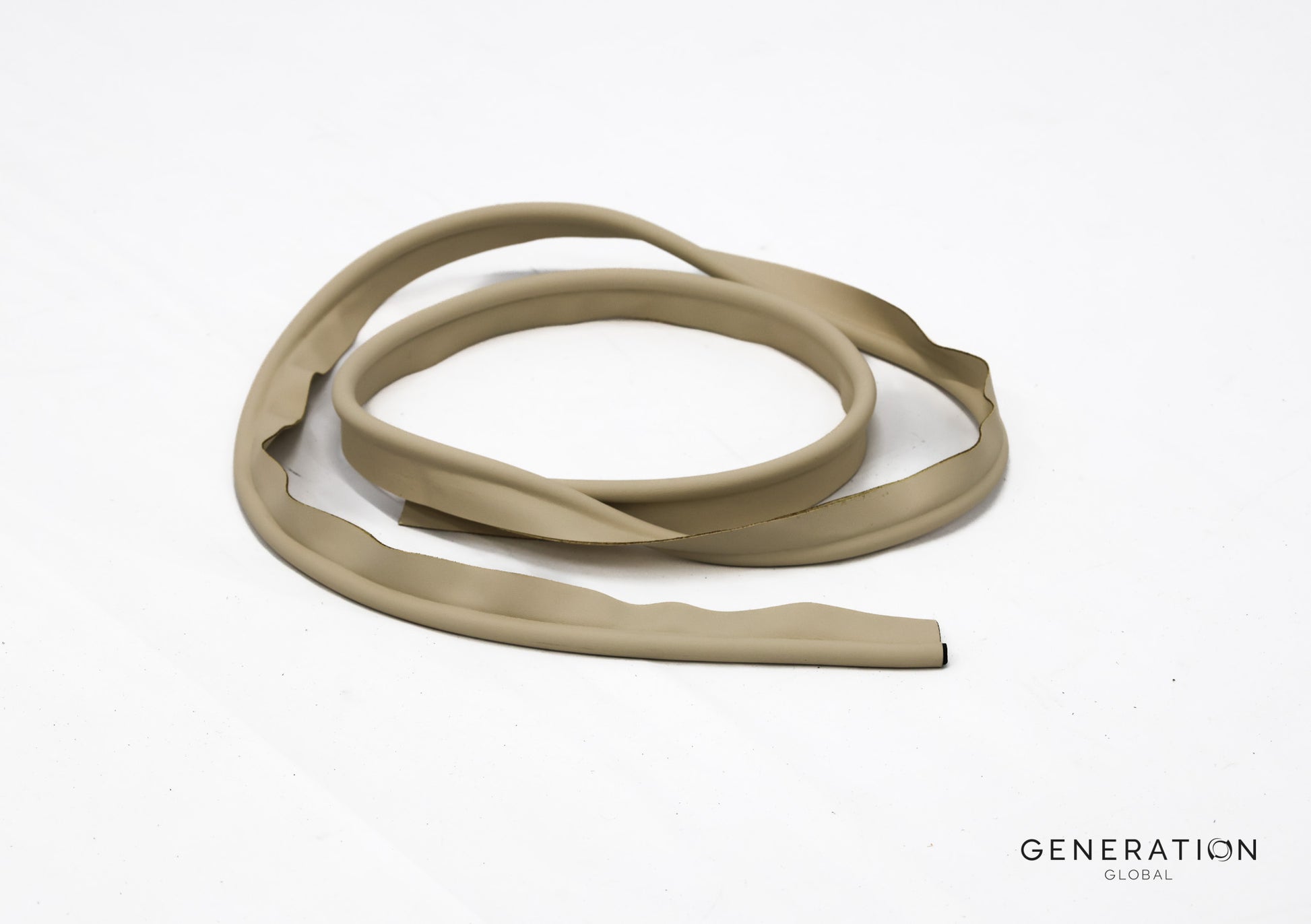

Description: The PA 28 Door Windlace Assembly is designed to be long enough to fit around a full Piper PA 28 FWD cabin door. It features a soft foam core that easily moulds to seal any gaps around the door, ensuring a snug fit while still allowing the door to close smoothly. Each windlace assembly is sufficient for one door.

Assembly Materials: Manufactured from high-quality vinyl, the cover is folded and stitched around a foam core, delivering both flexibility and durability.

Part Number: EPA-69403-03-GEN

OEM Part Numbers: 69403-03

Aircraft Eligibility: Piper PA-28-151/161, 1973 thru 2012 (S/N 28-7415001 and up)

Installation Required: Yes – some trimming will be necessary during installation to ensure a perfect fit.

Installation Difficulty: 2/5 Installation Time: 1hr per door

Complies with: CFR 14 23.853(a) flammability standards

Qty: x1 Windlace Assy
