Bell

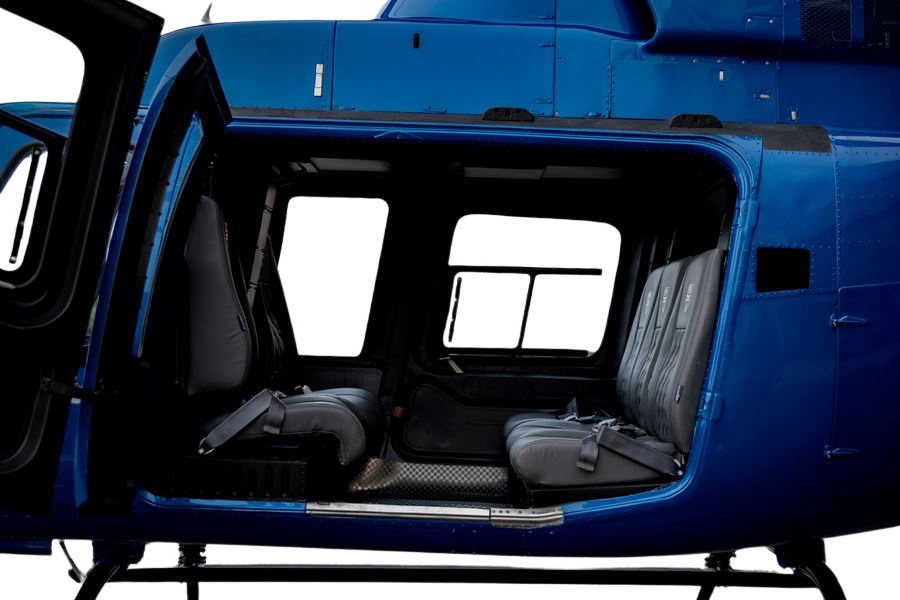

Aft Facing Seating, With-Frame, Gen I

Aft Facing Seating, With-Frame, Gen I

Regular price $3,252.44 NZD
Regular price Sale price $3,252.44 NZD
Sale Sold out
Shipping calculated at checkout.

Details

Description: Aft-Facing Seat Backrest & Bottom Assemblies

Aircraft Eligibility: 206 Longranger (year of mfg. 1975 through to 1982).

Design: Generation I  (Design your own seat using our configurator design tool)

Assembly Materials: Covers in high quality aviation leather, cushioning in Genlite high comfort foam, FRP composite seat backrest pans and seat diaphragms in durable, lightweight polyester fabric.

Features: The seat bottom diaphragms are designed to be stretched over the existing bottom frames with a contact adhesive, cushion/cover assemblys are designed to glue onto the diaphragm and wrap around the frame (Excludes supply of seat bottom frame). Backrests are supplied as an assembly, ready to fit to the helicopter using hook and loop velcro fastener.

Seat Assy Part Numbers:

Backrest LH - EPA-206-072-216-003-GEN

Backrest RH - EPA-206-072-216-004-GEN

Bottom LH - EPA-206-072-216-117-GEN*

Bottom RH - EPA-206-072-216-118-GEN*

* For customers using original seat bottom frames (each assy contains a cover, cushion & sling).

Installation Required: Yes

Design Approval:

EASA Part 21J Approval (20603-APF01) - accepted by FAA/TCCA

CASA EO Approval (ESE-Bell206-25-010)

New Zealand Form 337 Approval (SA8487-01-01)

Lead times:

Production - Approx 2-3 weeks

Shipping - Aprrox 7-10 days (Air Freight)

Qty: 2 Seat Assy
