B58 Seat Upholstery - 6 Place Seating

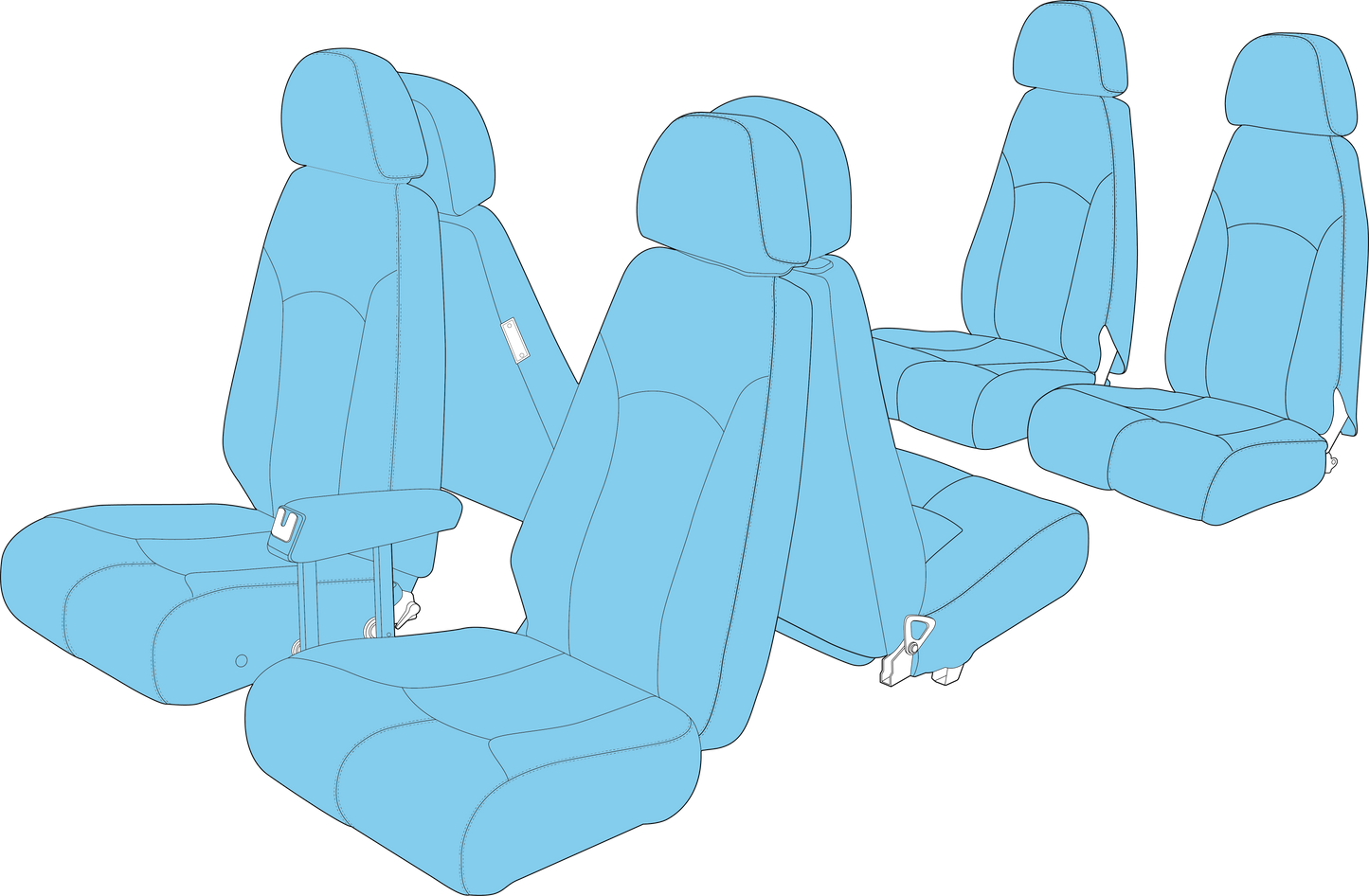

Description: Beechcraft Baron 58, 6 Place Seat Upholstery - 2 x front seats, 2 x middle seats, and 2 x rear seats. Seating includes headrests, backrests bottom covers, foam cushions and diaphragms.

Assembly Materials: Covers in high quality aviation leather, cushioning in Genlite high comfort foam, and seat diaphragms in durable, lightweight polyester fabric.

Features: The seat diaphragms are stretched over the existing frames with a contact adhesive, seat cushions are glued to the diaphragm/frame assembly, and finally the leather covers are fitted to the cushions. Covers have been designed so minimal fitting and manipulation is required for a perfect fit. (Excludes the supply of seat frames and contact adhesive).

Part Numbers:

Assembly Part Number: EPA-58-530072-X6-GEN

Front Seat Assy - EPA-58-530072-100-GEN

Middle Seat Assy (W- 3-Pt Harness) - EPA-58-530072-200-GEN

Middle Seat Assy (W/o- 3-Pt Harness) - EPA-58-530072-300-GEN

Rear Seat Assy - EPA-106-530025-100-GEN

Aircraft Eligibility: A36 & B58 (1974 - 1981), G36 & G58 (2005-2012)

Installation Required: Yes

Installation Difficulty Level: 4/5.

Install Time: 3-4 hours per seat

Complies with:   CFR 14 23.853(a)

Qty: 6 seats
