Bell206 Crew Seating, With-Frame, Gen I

Description:
Crew Seat Backrest & Bottom Assemblies – Upgrade your Bell 206 helicopter seating with our Generation I seat kits, engineered for comfort, durability, and style. Perfectly suited for restoration or interior enhancement, this complete set includes custom-configurable backrest and bottom assemblies. Use our online configurator to tailor the design to your preferences.

Aircraft Eligibility:
- Bell 206 JetRanger (Serial Numbers 4 to 3566, unless retrofitted with Deluxe or Custom Deluxe seating)
- Bell 206 LongRanger (Manufactured from 1975 to 1982)

Design:

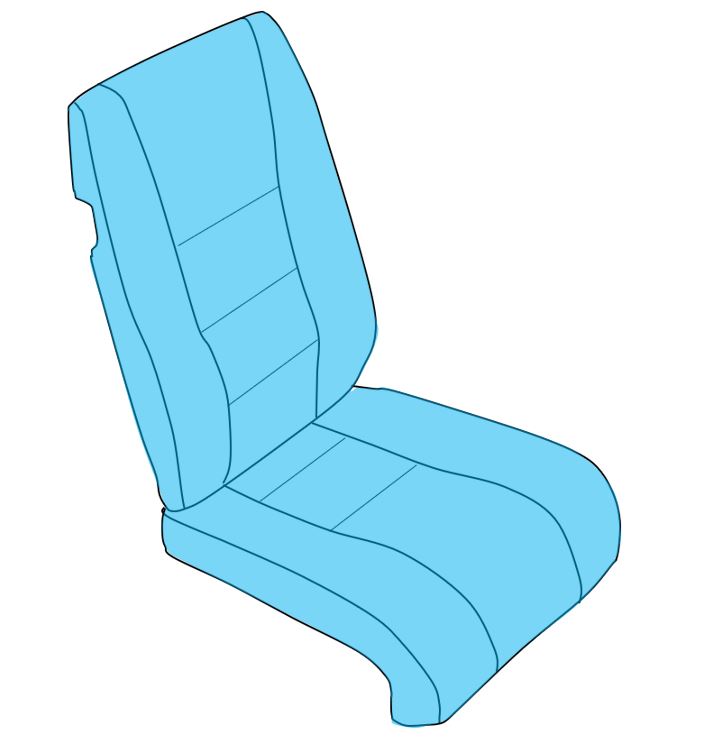

Generation I – Customizable with our online seat configurator tool.

Assembly Materials:
- Premium aviation-grade leather seat covers
- Genlite high-comfort foam cushioning
- FRP (Fiberglass Reinforced Plastic) composite seat backrest pans
- Lightweight polyester seat diaphragms

Features:
The bottom seat diaphragms stretch over your existing frames using contact adhesive. Cushion and cover assemblies are designed to glue onto the diaphragm and wrap securely around the frame (seat bottom frames not included). Backrests are delivered as complete assemblies and attach directly to the airframe using hook-and-loop Velcro fasteners for fast, reliable installation.

Seat Assembly Part Numbers:
Backrest: EPA-206-072-216-001-GEN
Bottom: EPA-206-070-739-013-GEN (for use with original seat bottom frames; includes cover, cushion, and sling)

Installation Required:
Yes – Moderate complexity

Installation Difficulty Level:
3/5 – Approximate installation time: 1–2 hours per seat

Design Approval:
- EASA Part 21J Approval (20603-APF01) – Accepted by FAA/TCCA
- CASA EO Approval: ESE-Bell206-25-010
- New Zealand Form 337 Approval: SA8487-01-01

Lead Times:
Production: Approx. 2 weeks
Shipping: Approx. 7–10 days (Air Freight)

Qty:
2 Seat Assemblies (1 backrest and 1 bottom per seat)
