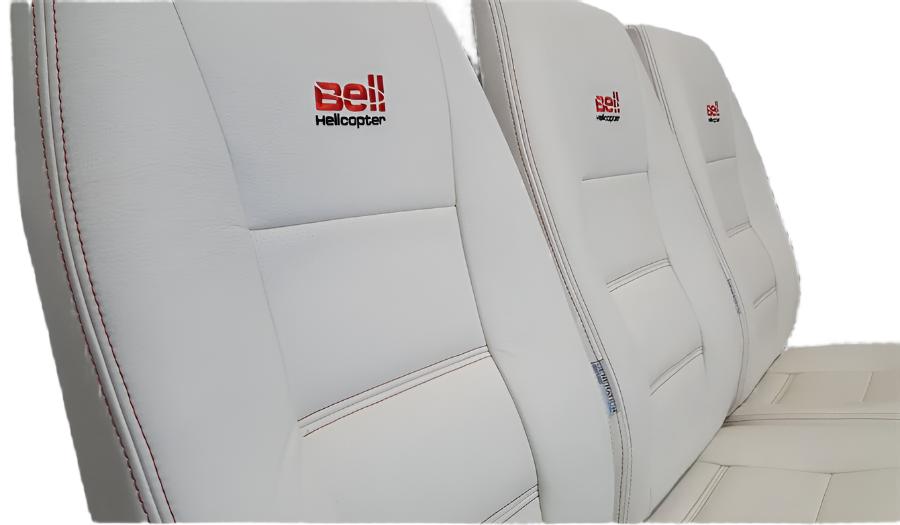

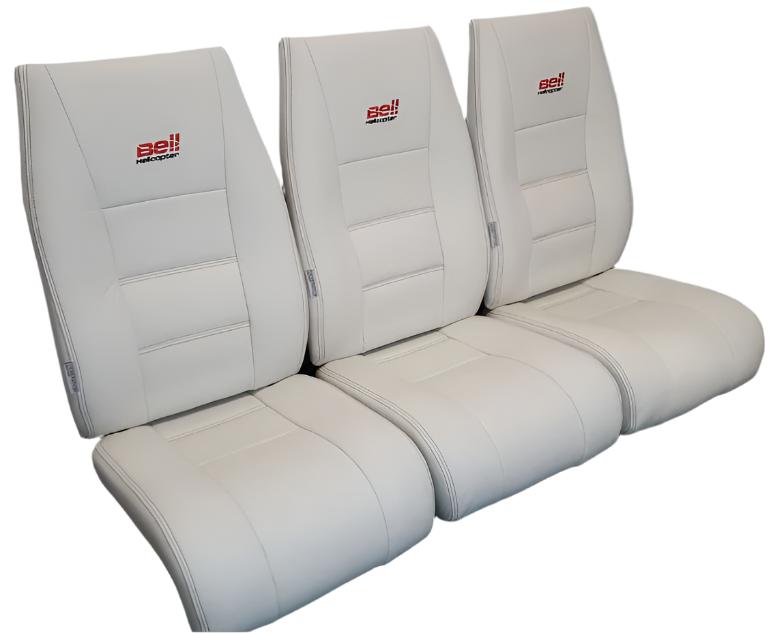

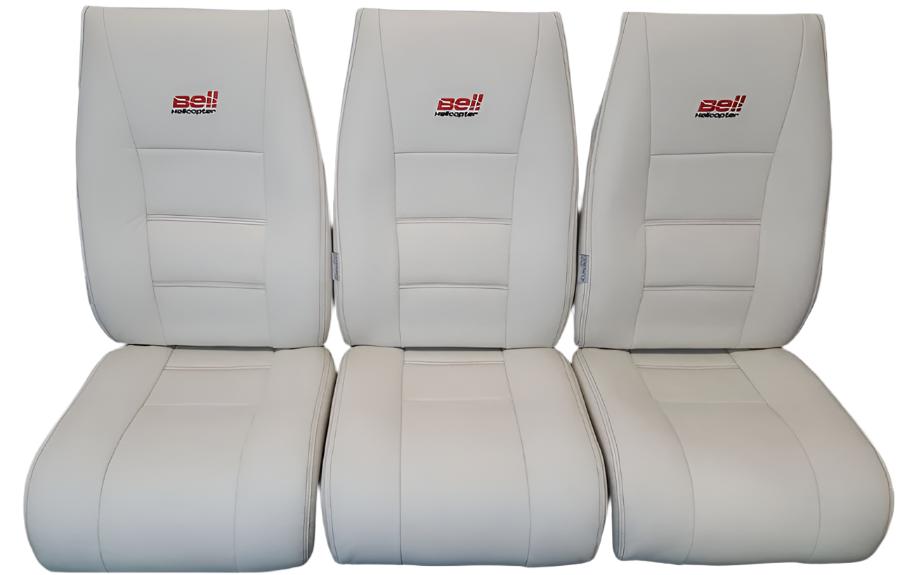

Bell 206 Pax Seating, With-Frame, Gen I

Description: Rear Pax Seat Backrest & Bottom Assemblies – Generation I. Upgrade your Bell 206 helicopter’s rear passenger seating with premium comfort and durable, custom-fit assemblies. Includes high-quality aviation leather covers, Genlite foam cushioning, FRP composite backrest pans, and lightweight polyester fabric diaphragms. Designed for easy installation with minimal modifications.

Aircraft Eligibility: - Bell 206 JetRanger (S/N 4 to 3566, unless retrofitted with deluxe/custom deluxe seating)
- Bell 206 LongRanger (Manufactured between 1975–1982)

Design:

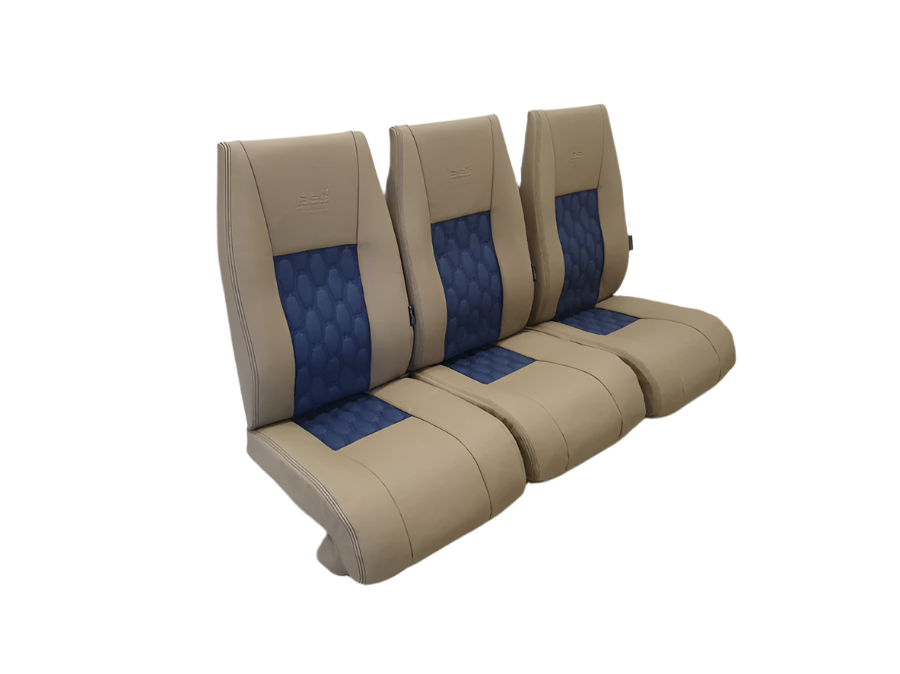

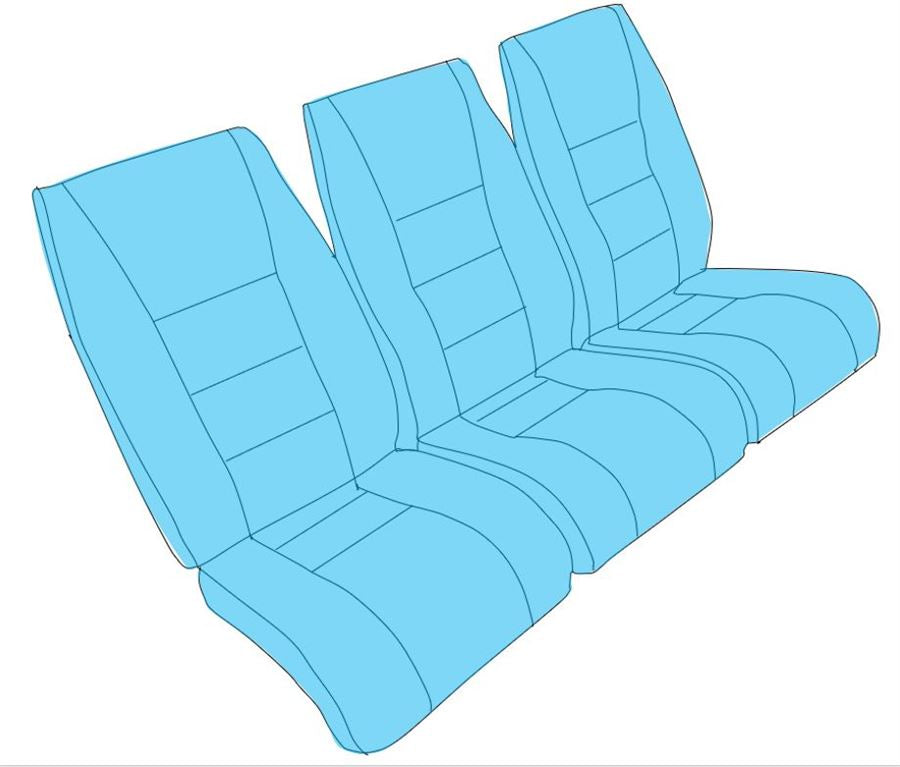

Generation I – Fully customizable seating using our configurator design tool. Choose your materials, colours, and style for the perfect fit in your helicopter's interior.

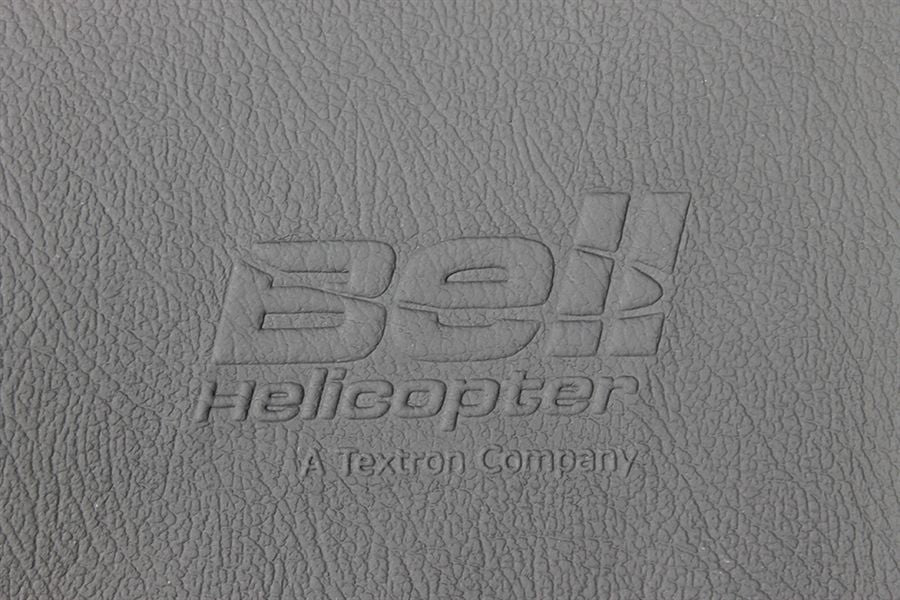

Assembly Materials: - Premium aviation leather seat covers
- Genlite high-comfort foam cushions
- FRP composite seat backrest pans
- Durable, lightweight polyester fabric seat diaphragms

Features: - Seat bottom diaphragms are designed to be stretched over existing bottom frames with contact adhesive.
- Cushion and cover assemblies are designed to glue onto the diaphragm and wrap around the frame.
- Backrests come pre-assembled and are ready to fit to the helicopter using hook-and-loop velcro fasteners.
*(Seat bottom frame not included, please reuse your original frame.)

Seat Assembly Part Numbers: Backrest – EPA-206-072-216-005-GEN
Bottom – EPA-206-070-740-030-GEN
*For customers using original seat bottom frames (each assembly includes a cover, cushion, and sling).

nstallation Required: Yes – Easy to install with minimal tools required.

Installation Difficulty Level: 3/5 –

Install Time: Approx. 1–2 hrs per seat

For Installation Instruction Videos Click Here

Design Approvals: - EASA Part 21J Approval (20603-APF01) – Accepted by FAA/TCCA
- CASA EO Approval (ESE-Bell206-25-010)
- New Zealand Form 337 Approval (SA8487-01-01)

Lead Times: >- Production – Approx. 2 weeks
- Shipping – Approx. 7–10 days (Air Freight)

Qty: 3 Seat Assemblies (Includes backrest, bottom, cushion, and sling per seat)
