Bell 206 Pax Seating, With-Frame, Gen II

Description:

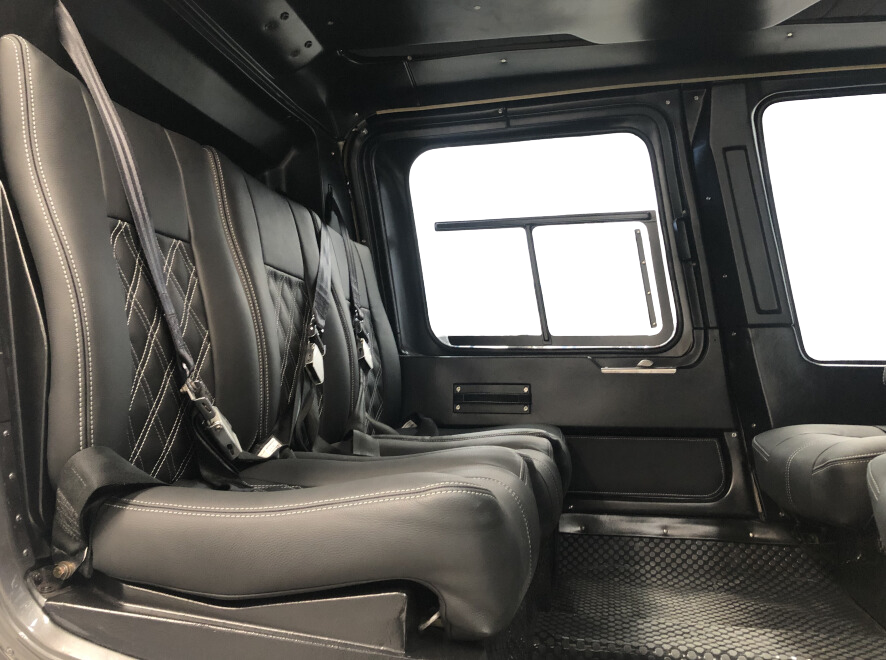

Rear Pax Seat Backrest & Bottom Assemblies – Generation II. Upgrade your Bell 206 JetRanger or LongRanger with premium, custom-fit covers, cushions, and seat diaphragms. Perfect for replacing or refreshing your existing seating with high-quality aviation leather and Genlite foam for ultimate comfort.

Aircraft Eligibility:
- Bell 206 JetRanger (S/N 3567 through to subsequent)
- Bell 206 LongRanger (Manufactured from 1982 onwards)

Design:
Generation II – A new, carefully designed product created in collaboration with our design team to ensure ease of installation and a perfect, stylish, and comfortable fit for your helicopter seats. Enjoy the flexibility to customize your seating with our design configurator.

Assembly Materials:
- High-quality aviation leather covers
- Genlite high-comfort foam cushions
- Durable, lightweight polyester fabric seat diaphragms

Features:
The seat diaphragms are designed to be stretched over existing frames with contact adhesive. The cushion and cover assemblies are designed to glue onto the diaphragm and wrap around the frame for a snug and comfortable fit. Minimal fitting and manipulation are required for a perfect installation. (Excludes the supply of seat frames and contact adhesive.)

Installation Difficulty Level:
4/5 – Install Time: Approximately 2-3 hours per seat

Seat Assembly Part Numbers:
Backrest – EPA-206-072-220-101-GEN
Bottom – EPA-206-072-219-101-GEN

Design Approvals:
- EASA Part 21J Approval (20603-APF01) – Accepted by FAA/TCCA
- CASA EO Approval (ESE-Bell206-25-010)
- New Zealand Form 337 Approval (SA8487-01-01)

Lead Times:
- Production – Approx. 2 weeks
- Shipping – Approx. 7–10 days (Air Freight)

Qty:
3 Seat Assemblies (Includes backrest, bottom, cushion, and sling per seat)
